Type LA-SS

Part of the Stainless Steel Flexible Conduit Family.

A UL-listed, flexible stainless-steel conduit offering excellent protection against corrosion, sunlight (UV), and wet, oily conditions. Ideally suited for industrial-grade installations requiring motion, vibration, and bending.

Construction:

Inner Core:

• Corrosion-resistant continuous strip of 316L Stainless Steel

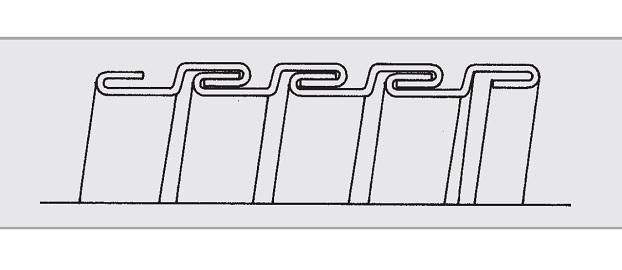

• 1/2″ – 2″ Fully Interlocked Profile

Liquidtight Jacket:

• Flexible PVC
• Resistant to Oils and Mild Acids
• Flame Retardant
• Excellent Sunlight Resistance (UV)
  • Type LA gray jacketing outperforms the UL360 UV aging test by 4 times
  • Type LA black jacketing outperforms the UL360 UV aging test by 5 times

APPLICATION:

• Formerly Type LTSS
• Machine Tools
• Corrosive Environments
• Industrial Environments
• Wet and Oily Locations
• Outdoor use due to the inherent UV resistance of PVC
• Compatible with standard liquidtight connectors

This conduit is intended for installation in accordance with Article 350 of the NEC (ANSI/NFPA-70) and in section 14.5.4 of the ANSI/NFPA-79 Standard for Industrial Machinery:

• Listed and marked for Direct Burial and in Poured Concrete
• For containment of 1000 volt and lower potential circuits
• Use Separate Grounding Conductor — If liquidtight flexible metal conduit contains a stainless-steel core, a wire-type equipment grounding conductor or a bonding jumper in accordance with 250.102(E) (2) shall be installed. Article 250.118 (A)(6)(f).
• Installations in hazardous (classified) locations:
  • Class I Div. 2: Article 501.10 (B)(2) & 501.30 (B)
  • Class II Div. 1: Article 502.10 (A)(2) & 502.30 (B) Div. 2: 502.10 (B)(2)
  • Class III Div. 1: Article 503.10 (A)(3) & 503.30 (B) Div. 2: 503.10 (B)
• Installed under raised floors in Data Processing Areas Articles 645.5 (E)
• Electric Signs and Outline Lighting over 1000 volts Articles 600.7/600.32(A)(1)
• Permitted for Service Entrance wiring to six feet Article 230.43
• Used as Feeders and Services at Marinas and Boatyards Article 553.7(B)
• Wiring on Building Article 225.10
• Conductor Enclosures Adjacent to Motors over 1000 V Article 430.223
• Underground Service, Feeder, Branch Circuit, and Recreational Vehicle Site Feeder Circuit Conductors Article 551.80
• Elevators and Hoistways Article 620.21
• Pools and Fountains Article 680
• Bodies of water. Article 682
• Fire Pumps. Article 695

Markets:

Defense, Healthcare, Mining, Oil & Gas, Power Plants, Ship Building, Steel Mills, Utilities, Wastewater Treatment
