Type NMLT & NMSC

Download PDF Inches | Download PDF Metric | print | request a catalog

Type NMLT and NMSC nonmetallic connectors are intended to be used with liquidtight nonmetallic conduit Type B. ( NM, NMHT, NMFG, and NM2.) They are not to be used with Type A (LNM-P) conduit or steel conduit.

Construction:

UL and cUL Listed
“O” Ring and steel locknut included
Angled connectors provide a smooth “sweep” radius
Standard NPT Threads
Suitable for indoor/outdoor use
NMLT made from Nylon 6. Flame rating 94V-2. 125° C
NMLT-30 Series available in 45° angle configuration
NMSC screw-on, one-piece connectors made from UV rated PVC
NEMA 4X – IP66
Conjoin Type B conduit (NM, NMHT, NMFG, and NM2) with Couplings (Splices)

Markets:

Cell Towers, Construction, Data Centers, Fixture / AC Whips, Healthcare, Machine Tool (OEM), Power Plants, Rail/Transit, Renewable Energy, Robotics, Security, Ship Building, Telecommunications, Utilities, Wastewater Treatment

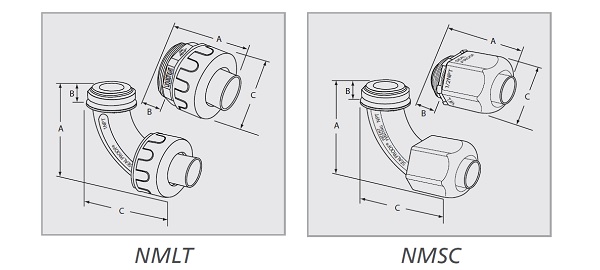

Config	US Trade Size	ISO (MM)	CSA (MM)	Type	KO Size (IN)	A - Dimensions (IN)	B - Dimensions (IN)	C - Dimensions (IN)
NMLT
STRAIGHT	3/8"	16	12	NMLT-10	1/2	2.000	0.540	1.400
STRAIGHT	1/2"	20	16	NMLT-11	1/2	2.000	0.540	1.400
STRAIGHT	3/4"	25	21	NMLT-12	3/4	2.200	0.635	1.700
STRAIGHT	1"	32	27	NMLT-13	1	2.280	0.740	2.000
STRAIGHT	1 1/4"	40	35	NMLT-14	1 1/4	2.440	0.760	2.400
STRAIGHT	1 1/2"	50	41	NMLT-15	1 1/2	2.700	0.800	2.670
STRAIGHT	2"	63	53	NMLT-16	2	2.990	0.850	3.280
90 degree	3/8"	16	12	NMLT-20	1/2	2.120	0.500	3.120
90 degree	1/2"	20	16	NMLT-21	1/2	2.120	0.500	3.120
90 degree	3/4"	25	21	NMLT-22	3/4	2.500	0.520	3.600
90 degree	1"	32	27	NMLT-23	1	3.125	0.700	4.125
90 degree	1 1/4"	40	35	NMLT-24	1 1/4	4.450	0.760	5.200
90 degree	1 1/2"	50	41	NMLT-25	1 1/2	4.750	0.800	5.200
90 degree	2"	63	53	NMLT-26	2	5.420	0.860	5.800
NMSC
STRAIGHT	1/2"	20	16	NMSC-11	1/2	1.750	0.500	1.250
STRAIGHT	3/4"	25	21	NMSC-12	3/4	1.800	0.625	1.500
90 degree	1/2"	16	12	NMSC-21	1/2	1.875	0.500	3.125
90 degree	3/4'	20	16	NMSC-22	3/4	2.375	0.625	3.500

Config

US Trade Size

ISO (MM)

CSA (MM)

Type

KO Size (IN)

A - Dimensions (IN)

B - Dimensions (IN)

C - Dimensions (IN)

NMLT

STRAIGHT

3/8"

NMLT-10

1/2

2.000

0.540

1.400

STRAIGHT

1/2"

NMLT-11

1/2

2.000

0.540

1.400

STRAIGHT

3/4"

NMLT-12

3/4

2.200

0.635

1.700

STRAIGHT

NMLT-13

2.280

0.740

2.000

STRAIGHT

1 1/4"

NMLT-14

1 1/4

2.440

0.760

2.400

STRAIGHT

1 1/2"

NMLT-15

1 1/2

2.700

0.800

2.670

STRAIGHT

NMLT-16

2.990

0.850

3.280

90 degree

3/8"

NMLT-20

1/2

2.120

0.500

3.120

90 degree

1/2"

NMLT-21

1/2

2.120

0.500

3.120

90 degree

3/4"

NMLT-22

3/4

2.500

0.520

3.600

90 degree

NMLT-23

3.125

0.700

4.125

90 degree

1 1/4"

NMLT-24

1 1/4

4.450

0.760

5.200

90 degree

1 1/2"

NMLT-25

1 1/2

4.750

0.800

5.200

90 degree

NMLT-26

5.420

0.860

5.800

NMSC

STRAIGHT

1/2"

NMSC-11

1/2

1.750

0.500

1.250

STRAIGHT

3/4"

NMSC-12

3/4

1.800

0.625

1.500

90 degree

1/2"

NMSC-21

1/2

1.875

0.500

3.125

90 degree

3/4'

NMSC-22

3/4

2.375

0.625

3.500

Config	US Trade Size	ISO (MM)	CSA (MM)	Type	KO Size (MM)	A - Dimensions (MM)	B - Dimensions (MM)	C - Dimensions (MM)
NMLT
STRAIGHT	3/8"	16	12	NMLT-10	12.7	50.8	13.7	35.6
STRAIGHT	1/2"	20	16	NMLT-11	12.7	50.8	13.7	35.6
STRAIGHT	3/4"	25	21	NMLT-12	19.1	55.9	16.1	43.2
STRAIGHT	1"	32	27	NMLT-13	25.4	57.9	18.8	50.8
STRAIGHT	1 1/4"	40	35	NMLT-14	31.8	62.0	19.3	61.0
STRAIGHT	1 1/2"	50	41	NMLT-15	38.1	68.6	20.3	67.8
STRAIGHT	2"	63	53	NMLT-16	50.8	75.9	21.6	83.3
90 degree	3/8"	16	12	NMLT-20	12.7	53.8	12.7	79.2
90 degree	1/2"	20	16	NMLT-21	12.7	53.8	12.7	79.2
90 degree	3/4"	25	21	NMLT-22	19.1	63.5	13.2	91.4
90 degree	1"	32	27	NMLT-23	25.4	79.4	17.8	104.8
90 degree	1 1/4"	40	35	NMLT-24	31.8	113.0	19.3	132.1
90 degree	1 1/2"	50	41	NMLT-25	38.1	120.7	20.3	132.1
90 degree	2"	63	53	NMLT-26	50.8	137.7	21.8	147.3
NMSC
STRAIGHT	1/2"	20	16	NMSC-11	12.7	44.45	12.70	31.75
STRAIGHT	3/4"	25	21	NMSC-12	19.1	45.72	15.88	38.10
90 degree	1/2"	16	12	NMSC-21	12.7	47.63	12.70	79.38
90 degree	3/4'	20	16	NMSC-22	19.1	60.33	15.88	88.90

Config

US Trade Size

ISO (MM)

CSA (MM)

Type

KO Size (MM)

A - Dimensions (MM)

B - Dimensions (MM)

C - Dimensions (MM)

NMLT

STRAIGHT

3/8"

NMLT-10

12.7

50.8

13.7

35.6

STRAIGHT

1/2"

NMLT-11

12.7

50.8

13.7

35.6

STRAIGHT

3/4"

NMLT-12

19.1

55.9

16.1

43.2

STRAIGHT

NMLT-13

25.4

57.9

18.8

50.8

STRAIGHT

1 1/4"

NMLT-14

31.8

62.0

19.3

61.0

STRAIGHT

1 1/2"

NMLT-15

38.1

68.6

20.3

67.8

STRAIGHT

NMLT-16

50.8

75.9

21.6

83.3

90 degree

3/8"

NMLT-20

12.7

53.8

12.7

79.2

90 degree

1/2"

NMLT-21

12.7

53.8

12.7

79.2

90 degree

3/4"

NMLT-22

19.1

63.5

13.2

91.4

90 degree

NMLT-23

25.4

79.4

17.8

104.8

90 degree

1 1/4"

NMLT-24

31.8

113.0

19.3

132.1

90 degree

1 1/2"

NMLT-25

38.1

120.7

20.3

132.1

90 degree

NMLT-26

50.8

137.7

21.8

147.3

NMSC

STRAIGHT

1/2"

NMSC-11

12.7

44.45

12.70

31.75

STRAIGHT

3/4"

NMSC-12

19.1

45.72

15.88

38.10

90 degree

1/2"

NMSC-21

12.7

47.63

12.70

79.38

90 degree

3/4'

NMSC-22

19.1

60.33

15.88

88.90
